The best refrigeration technology for transportation

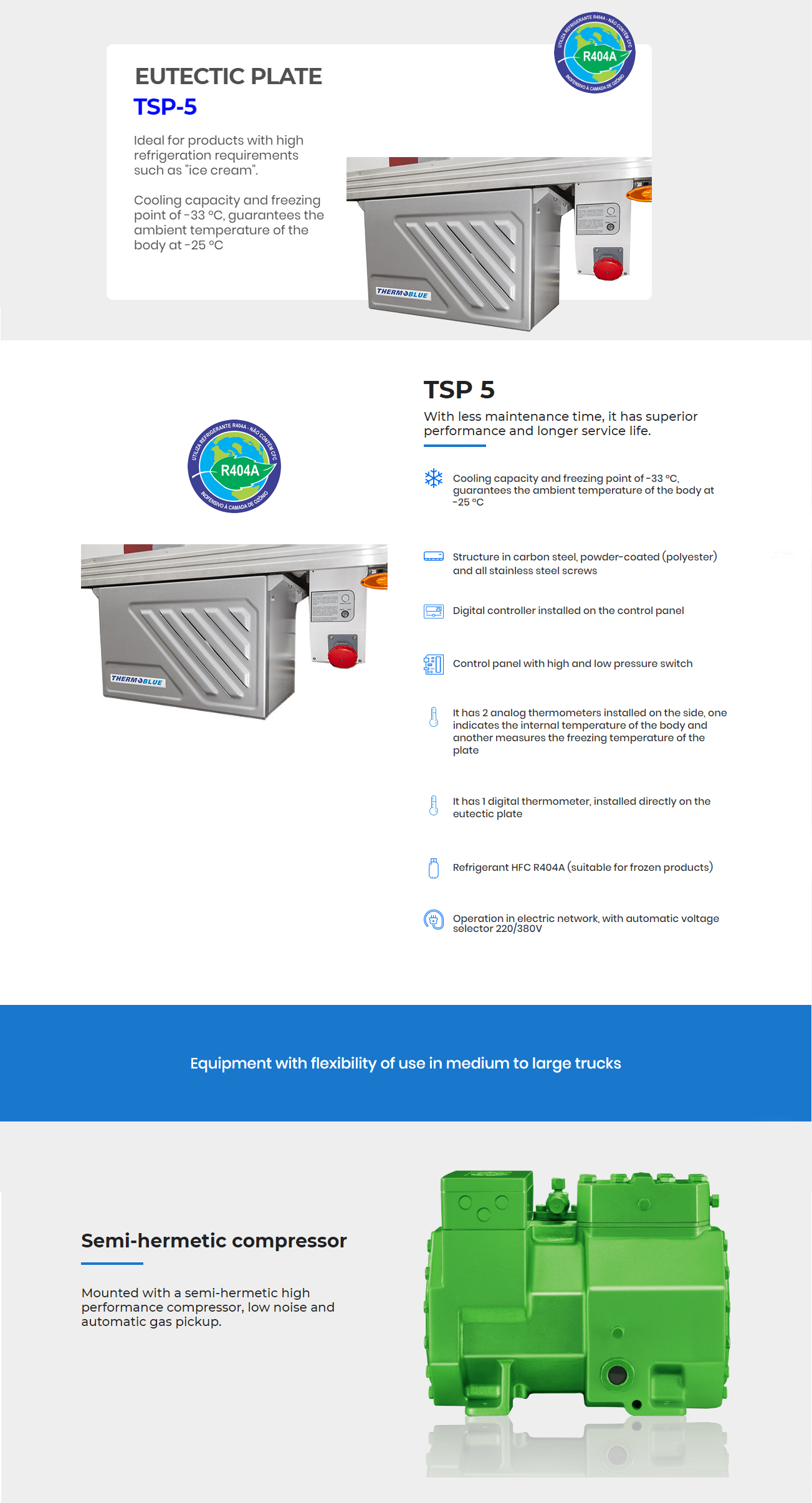

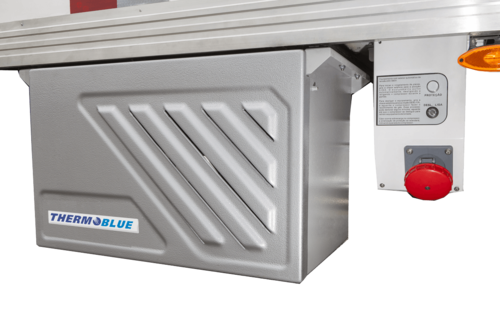

EUTECTIC PLATE  TSP-5

EUTECTIC PLATE  TSP-5

.： Cooling capacity and freezing point of -33 °C, guarantees the ambient temperature of the body at -25 °C
.： Digital controller installed on the control panel
.： Structure in carbon steel, powder-coated (polyester) and all stainless steel screws
.： Control panel with high and low pressure switch
.： It has 2 analog thermometers installed on the side, one indicates the internal temperature of the body and another measures the freezing temperature of the plate
.： It has 1 digital thermometer, installed directly on the eutectic plate
.： Refrigerant HFC R404A (suitable for frozen products)
.： Operation in electric network, with automatic voltage selector 220/380V
